- SK-XSW Bodypack Transmitter

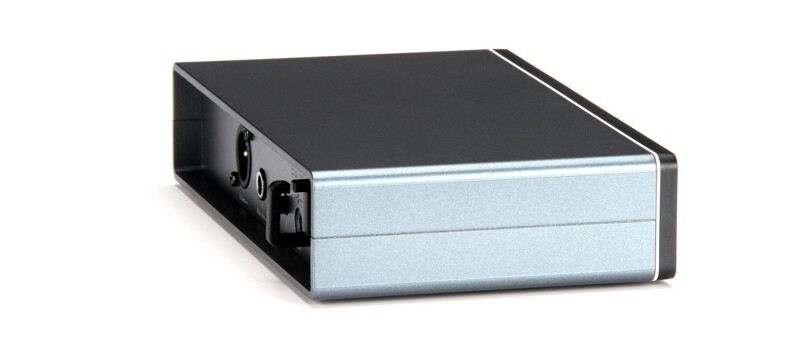

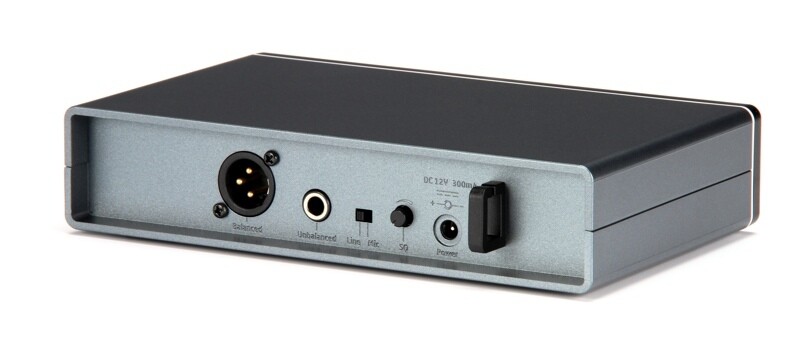

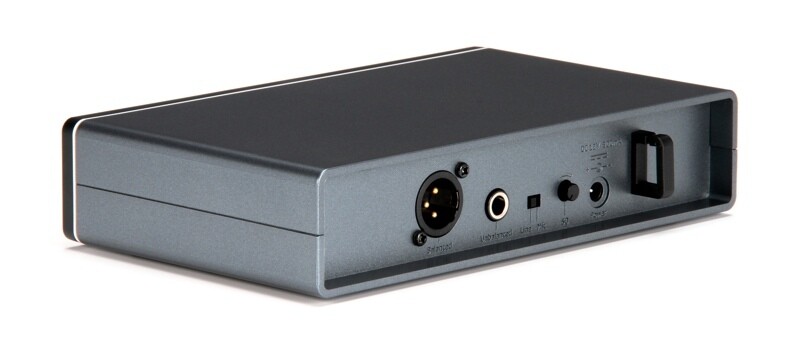

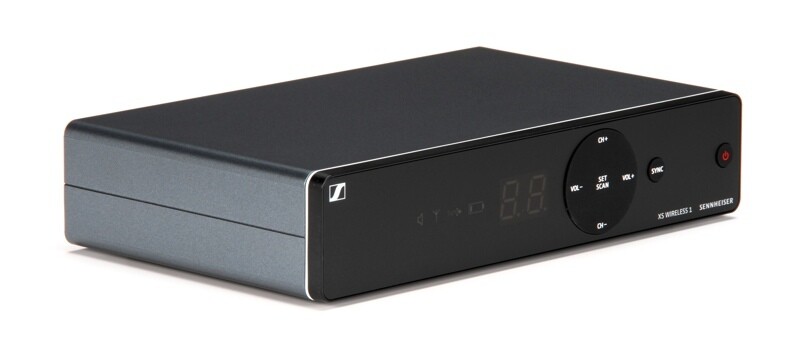

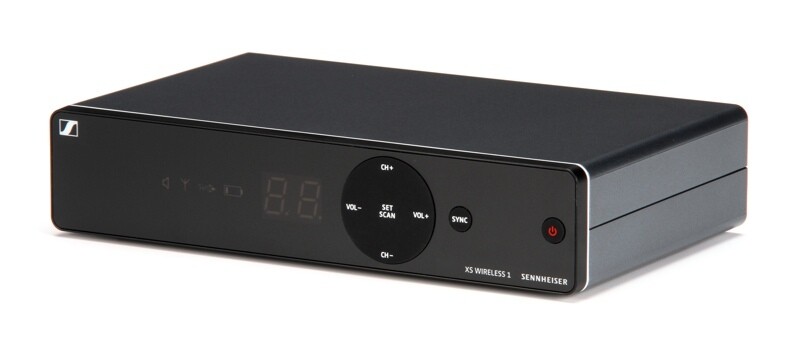

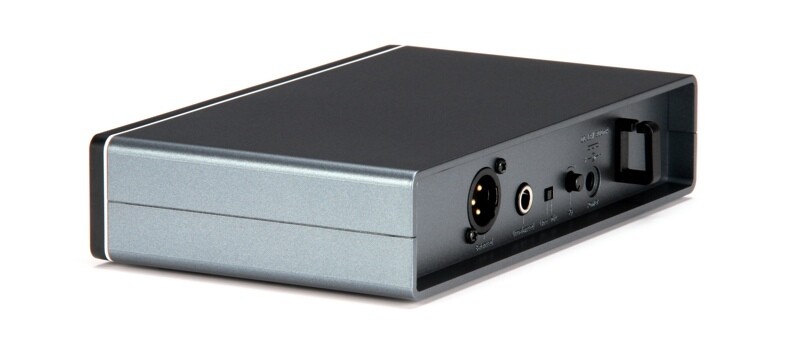

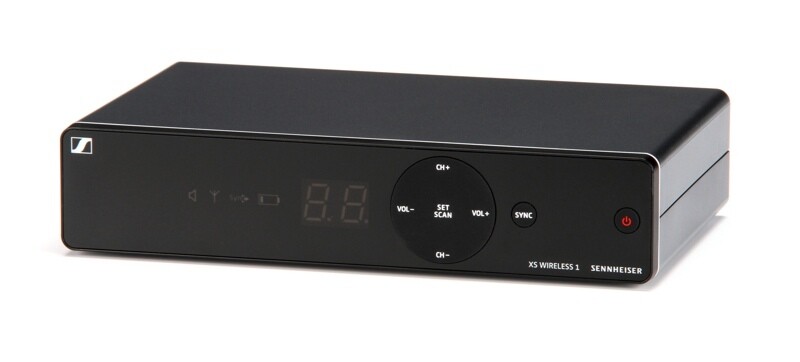

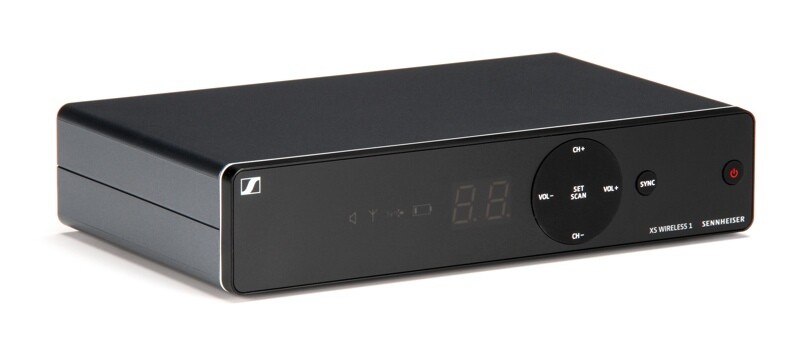

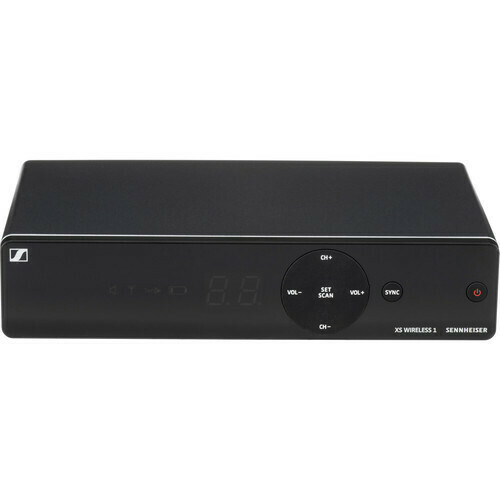

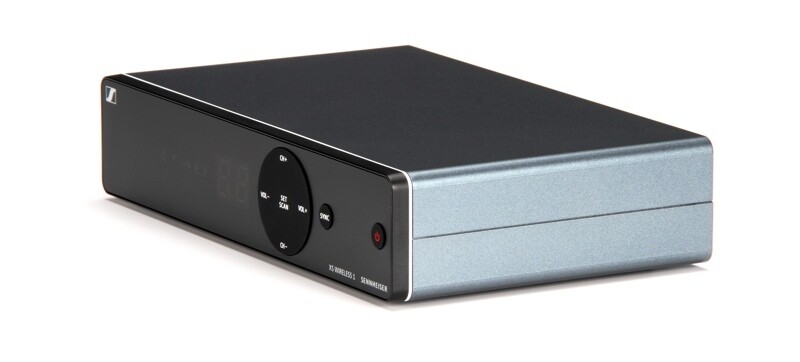

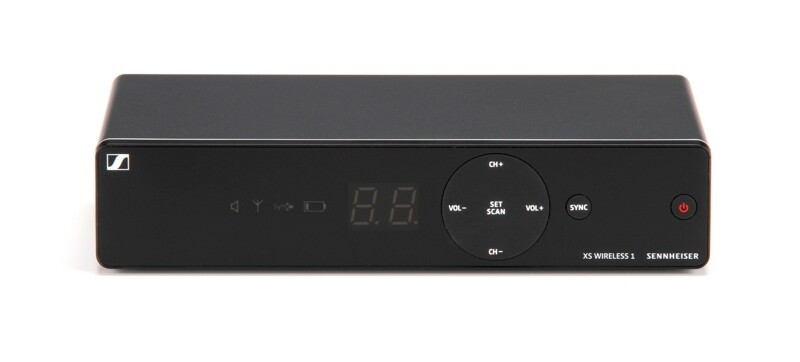

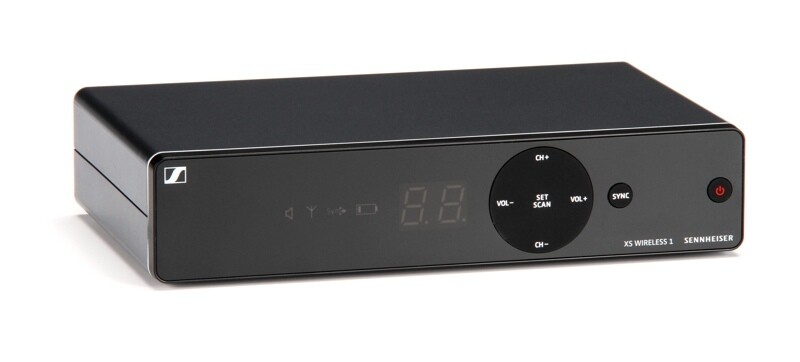

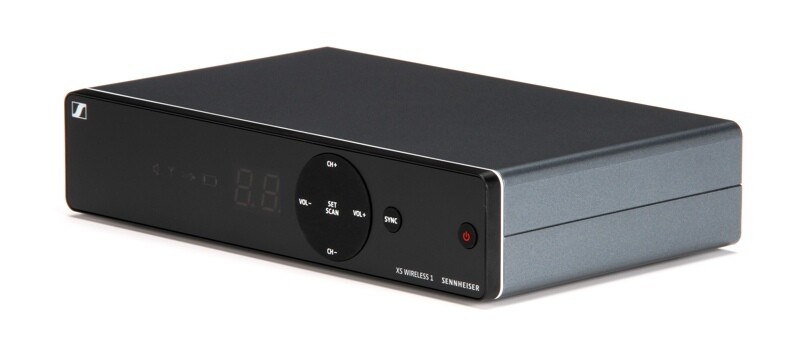

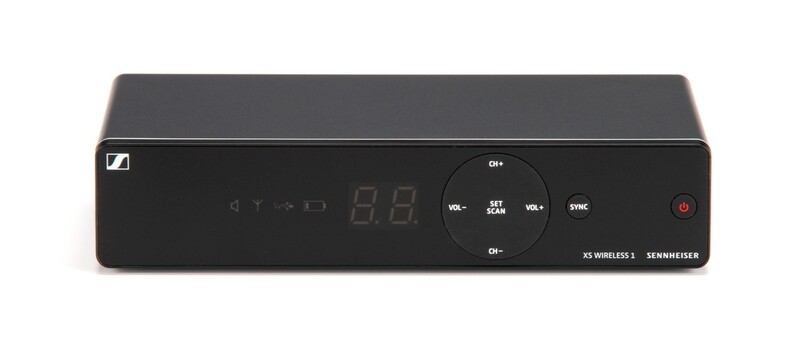

- EM-XSW 1 UHF Receiver
- ME2-II Lavalier Microphone
- Antenna-Switching Diversity Reception
- Automatic Frequency Management
- Selectable UHF Frequencies
- Up to 10 Compatible Channels
- Integrated Antennas
- 2 x AA Batteries are Included
- NT 12-5 CT Power Supply

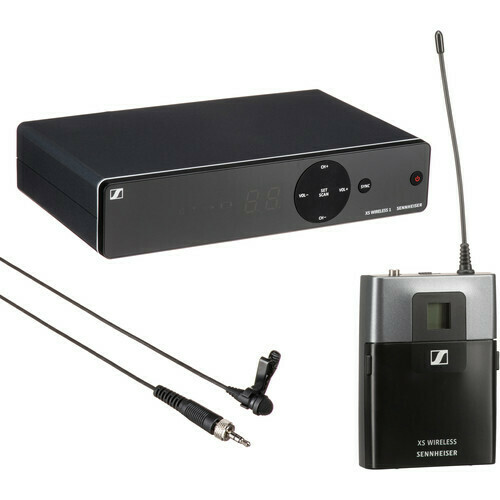

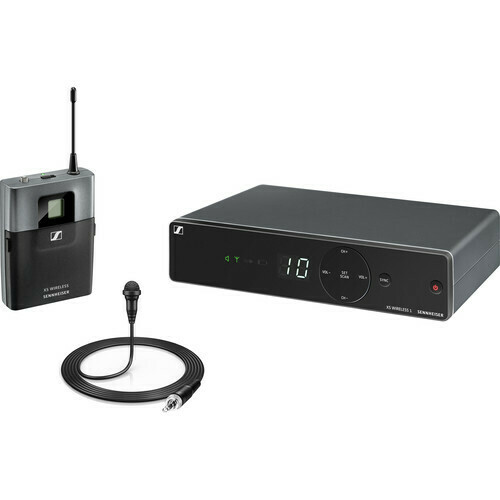

Sennheiser XSW 1-ME2 Overview
The XSW 1-ME2 UHF Lavalier Microphone Set from Sennheiser is an easy to use all-in-one wireless system for presenters and moderators. It can be used to capture audio for speech, interviews, and presentations.
The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a bodypack transmitter and a lavalier microphone. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.
Featuring Sennheiser's evolution Lavalier ME 2-II
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Sennheiser XSW 1-ME2 Specs
System
| Modulation | Wideband FM |
| Frequency Range | A: 548 to 572 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) |
| Storage | -4 to 158°F (-20 to 70°C) |
| Transmitter Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

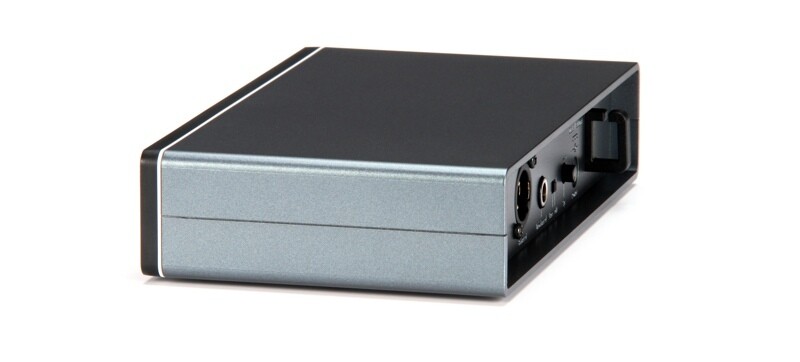

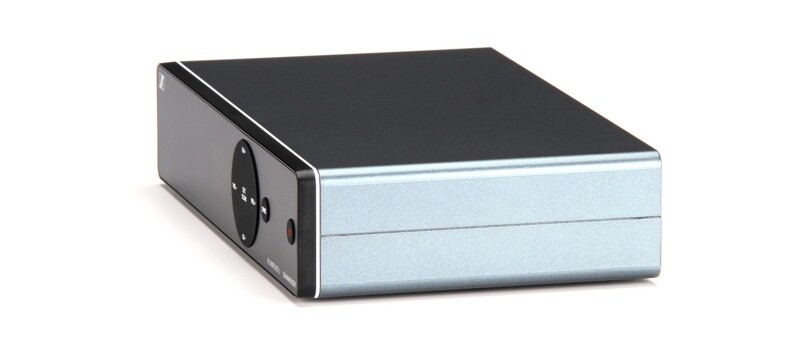

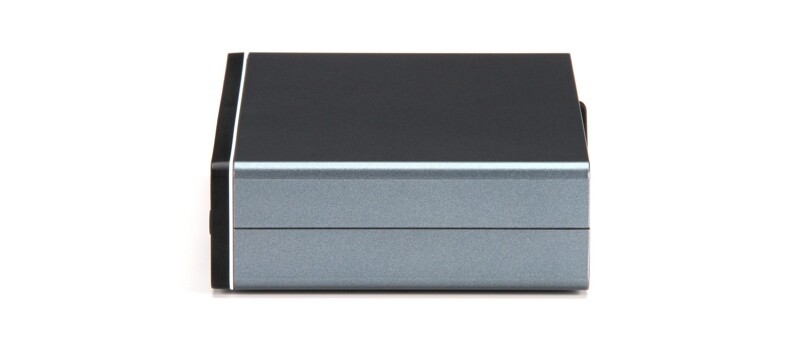

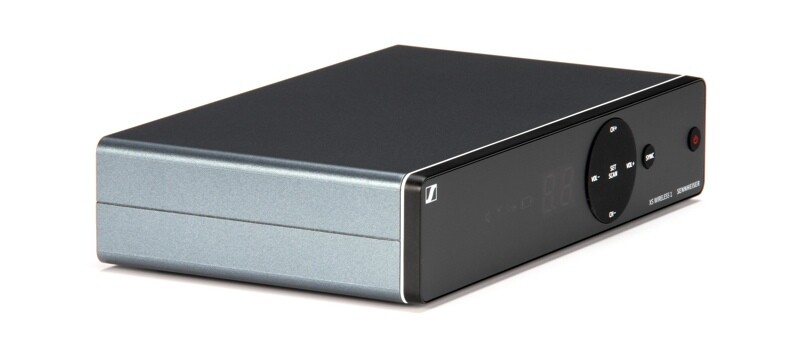

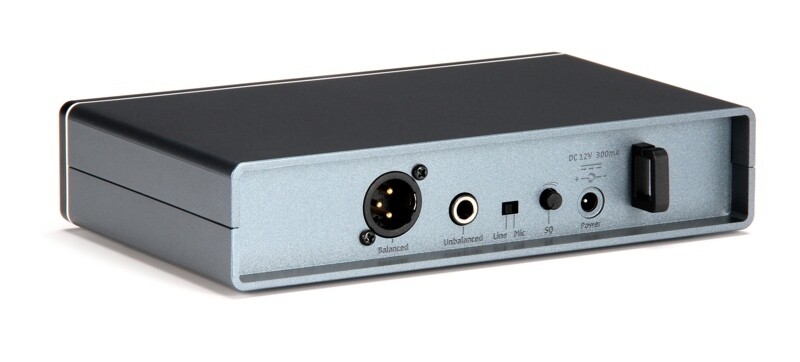

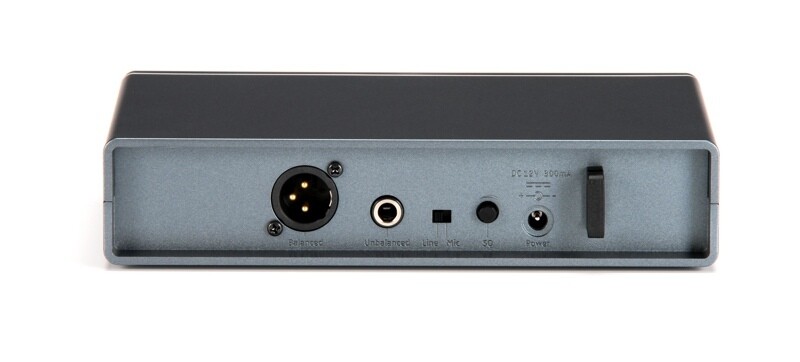

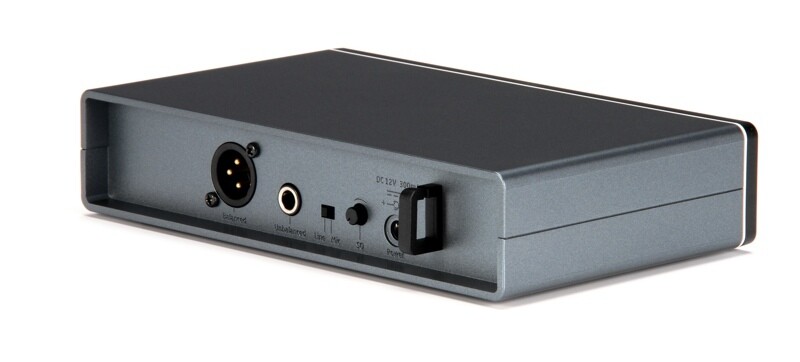

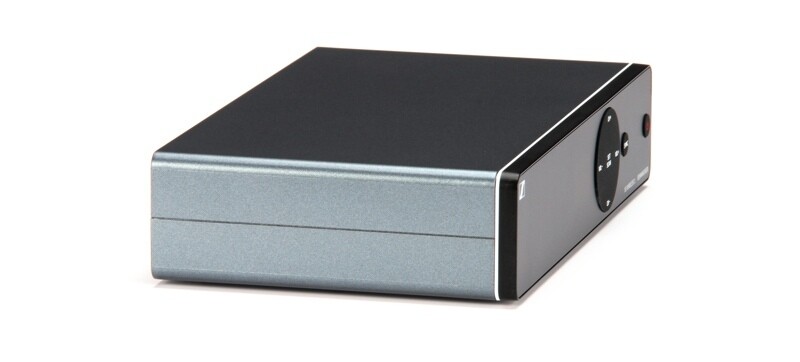

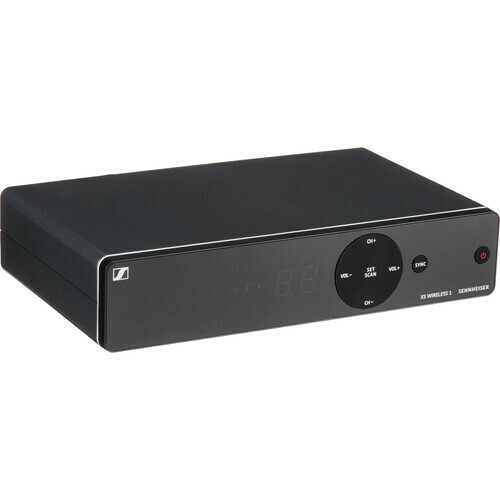

Receiver
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |

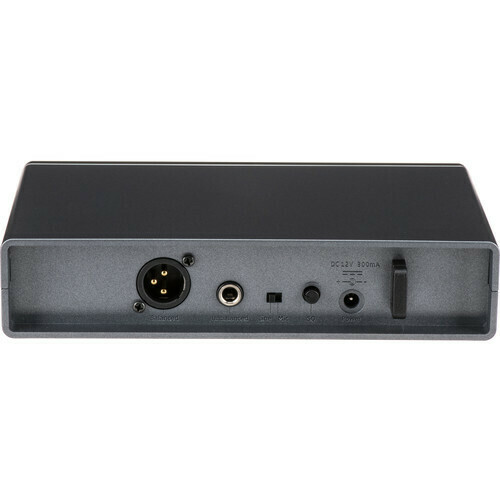

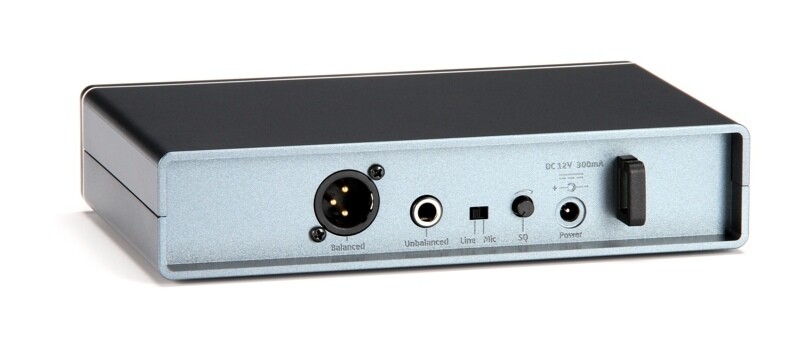

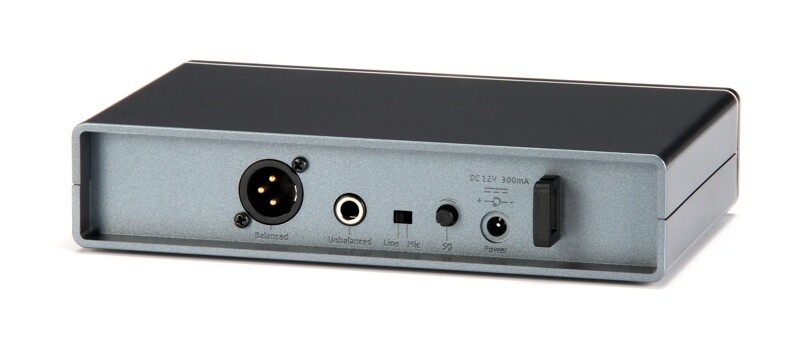

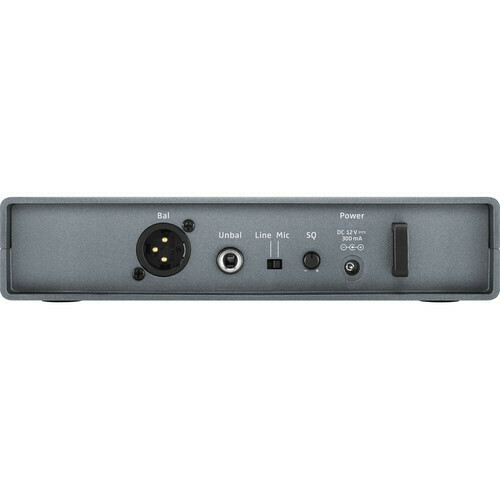

| Max Output Voltage | At Peak Deviation, 1 kHz AF
1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal, 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions (W x H x D) | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 12 oz (340 g) |

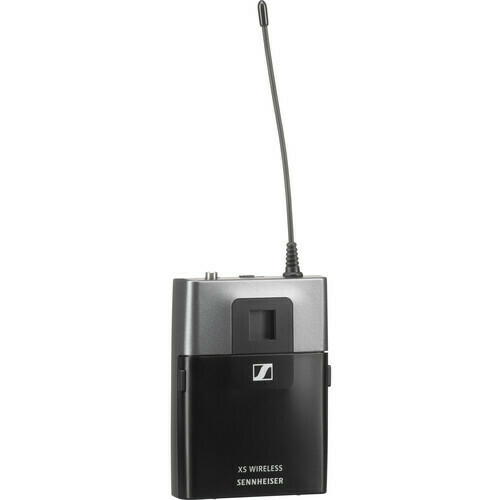

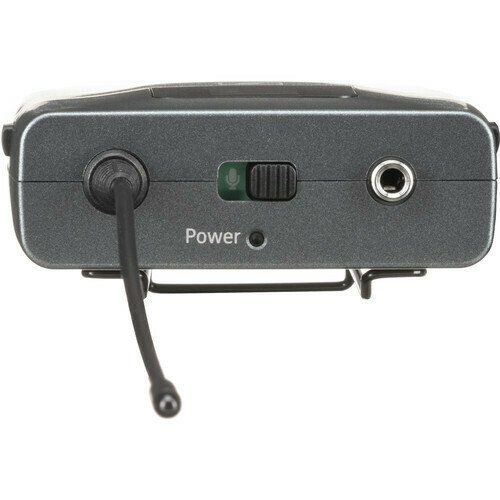

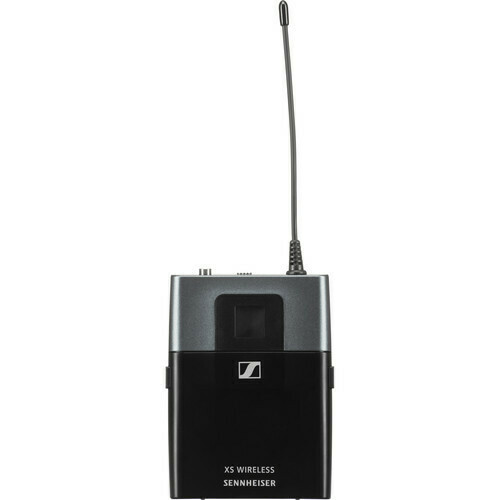

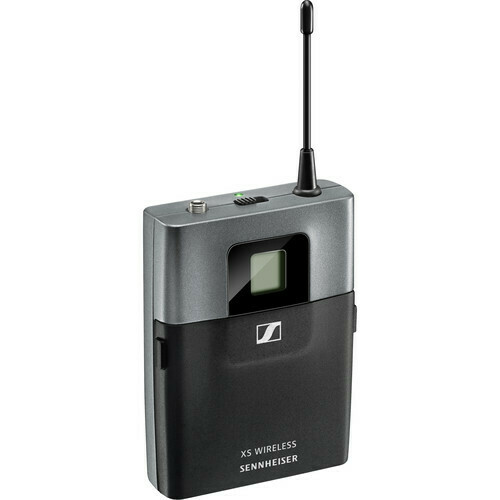

Bodypack Transmitter
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz
Mic: 50 Hz to 16 kHz |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions (W x H x D) | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) |
| Weight | 3.4 oz (95 g) |

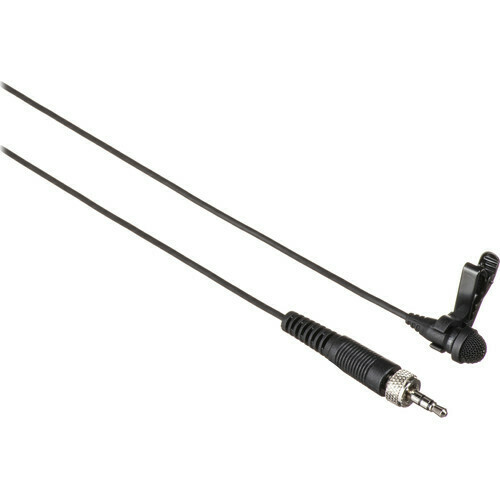

Lavalier Microphone Specs
| Microphone Type | Condenser, pre-polarized |
| Sensitivity | 20 mV/Pa |
| Polar Pattern | Omnidirectional |
| Max SPL | 130 dB |
Packaging Info
| Package Weight | 2.675 lb |
| Box Dimensions (LxWxH) | 13.8 x 13.65 x 3.4" |
UPC: 615104278431
