American DJ MIRAGE Q6 PAK Overview

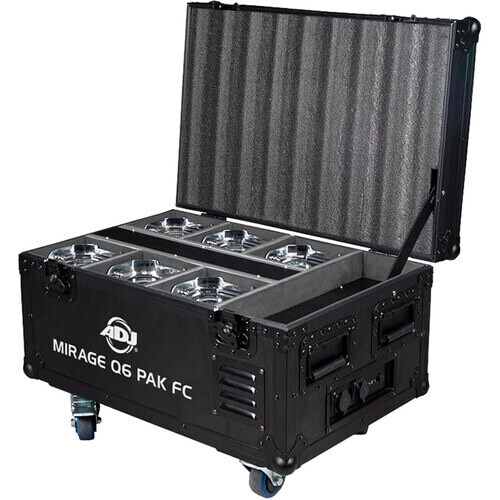

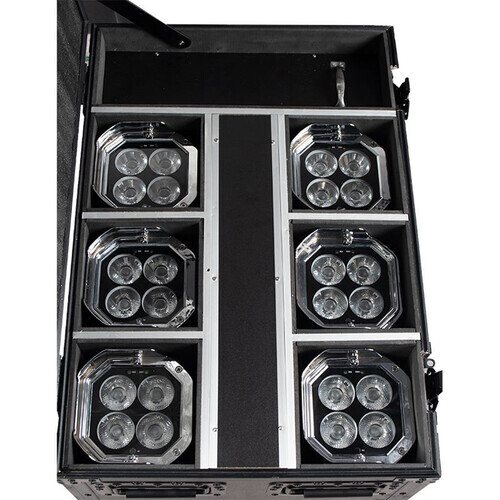

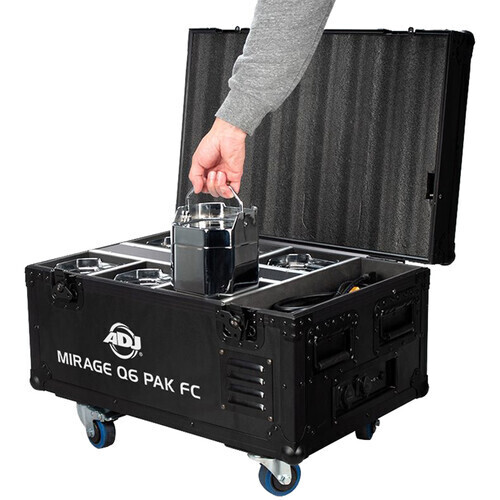

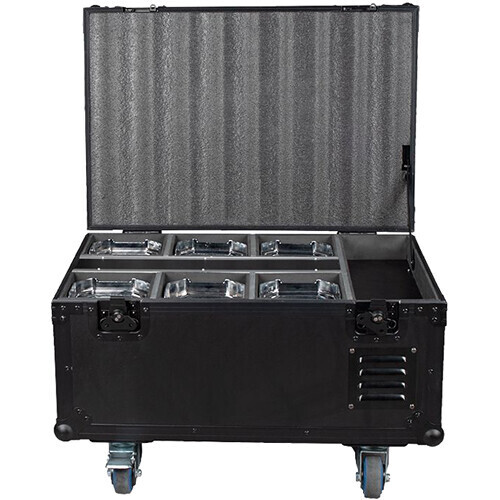

Lighting designers and event coordinators looking for a set of weatherproof RGBA LED lighting fixtures will be impressed with the IP65-rated American DJ Mirage Q6 PAK, a complete, all-in-one lighting system with six battery powered LED PAR fixtures in a durable flight case with onboard battery charging, well suited for clubs, mobile DJ setups, houses of worship, bands, live stages, and more.

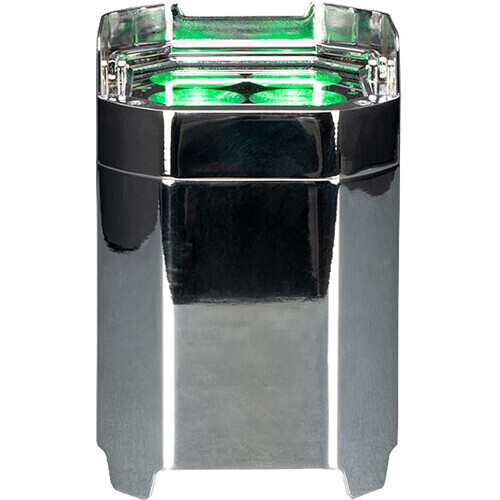

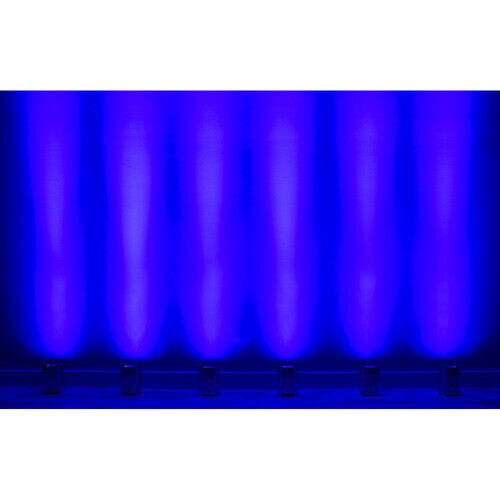

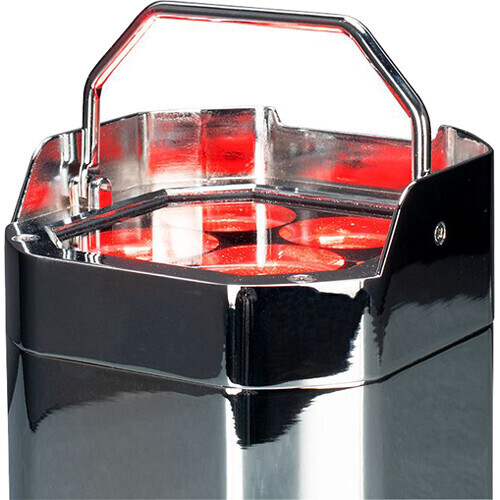

Each fixture is powered by four 10W RGBA LEDs that produce an 11° beam angle, making them great for wall washing. A built-in handle and feet allow the lights to be simply dropped into place—ready to go. A built-in kickstand allows the beam to be angled inward towards the wall if required, which creates a more intense wash and minimizes light spill onto the ceiling.
With an IP65 rating, the Mirage Q6 fixture can withstand the rigors of on-the-road wear and tear indoors and outdoors. The fixture is suitable for temporary use in rain, snow, dust, and sand. The integrated WiFLY EXR wireless DMX provides wireless control from a supported lighting controller up to 2500' away. The robust battery will operate up to 40 hours on a single color or up to 20 hours changing colors.
- IP65 outdoor rated

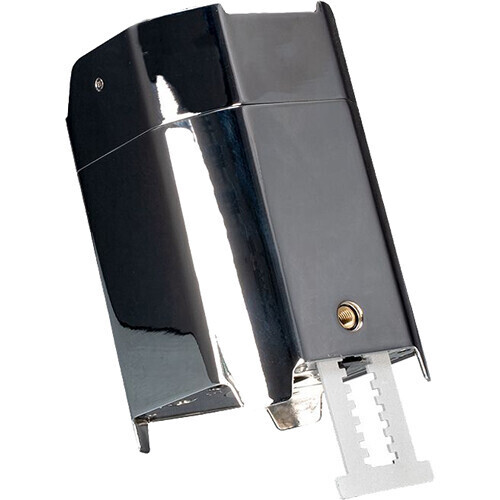

- Built-in kickstand to angle fixture when sitting on the floor

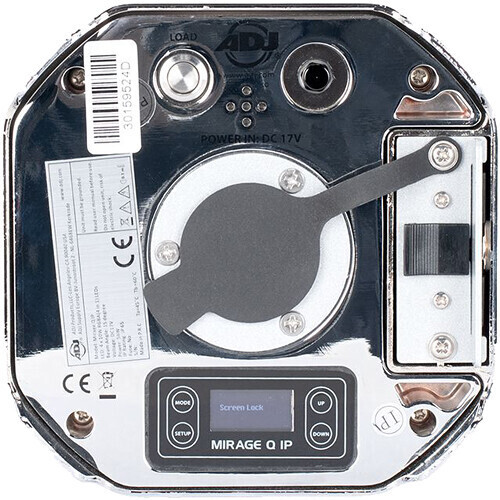

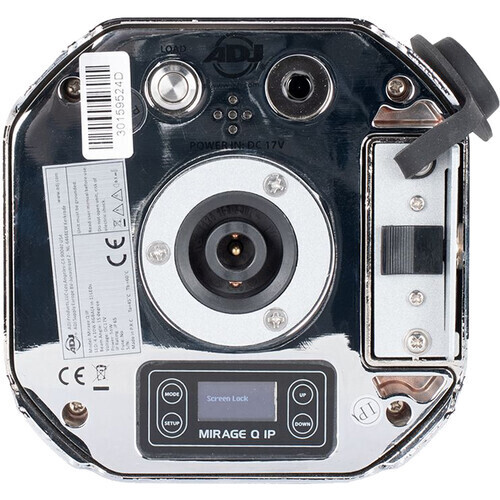

- 4-touch button OLED display on rear panel
- Built-in WiFLY EXR wireless DMX: Up to 2500' when used with ADJ’s WiFLY EXR
- Battery transceiver
- 64 built-in color macros
- Variable RGBA color mixing offers a smooth unlimited color palette
- LED pulse and strobe effect (0.2 to 11 Hz)
- Flicker-free operation
- Electronic Dimming: 0 to 100% with 6 dim modes and 4 dim curves
- Run it all night—no duty cycle
- Energy save mode
- Built-in alarm system with on/off
- Battery charge indicator on each fixture
American DJ MIRAGE Q6 PAK Specs
Light
| Light Type | PAR |
| Light Source | 4 x Color LED - 10 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red
Green
Blue
Amber |
| Photometrics | 920 fc / 9903 Lux at 6.6' / 2 m
213.9 fc / 2303 Lux at 13.1' / 4 m |
| Beam Angle | 11° |
| Shutter / Strobe | Electronic |
| Zoom Adjustment | None |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
Performance
| Operating Modes | Automatic, Color Change, Color Dimmer, Program, Static Color |
| Macros / Programs | 64 x Color Macro
13 x Internal Program
1 x Color Fade |
| Effects | Strobe (Variable Speed) |
| Strobe Rate | 0.2 to 11 Hz |
| Gobos | None |
Control
| Control Protocols | WiFly |
| DMX Channel Modes | 11 Mode(s):
4 / 6 / 7 / 8 / 9a / 9+ / 10 / 11 / 12 / 15 / 18-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | IR Remote (with Included Equipment) |
Connectivity
| I/O | None |
| Wireless Range | 2500' / 762 m |
Power
| AC Input Power | 100 to 240 VAC, 50/60 Hz |

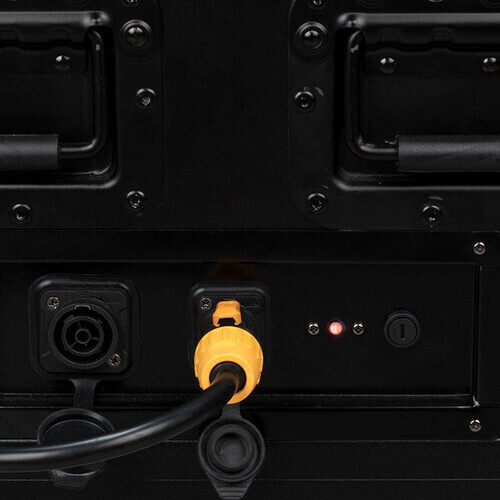

| AC Power Connector | Input: 1 x powerCON TRUE1
Output: 1 x powerCON TRUE1 |
| DC Input Power | 17.3 VDC |
| Fuse | None |
| Power / Current Consumption | 400 W / 4 A |
| Battery Type | 14.8 V Lithium-Ion |
| Battery Capacity | 11,000 mAh |
| Approximate Battery Life | Single Color: Up to 40 Hours
All On: Up to 20 Hours |
| Battery Charging Time | 7 Hours |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
Physical
| Mounting | Floor Base |
| Exterior Color | Black |
| Certifications | CE, ETL
*as per Manufacturer |
| Dimensions | 8.3 x 5.6 x 5.6" / 21.1 x 14.2 x 14.2 cm |
| Weight | 6.1 lb / 2.8 kg |
Packaging Info
| Package Weight | 104 lb |
| Box Dimensions (LxWxH) | 26.5 x 19.2 x 18.5" |
