CHAUVET DJ DMXAN Overview

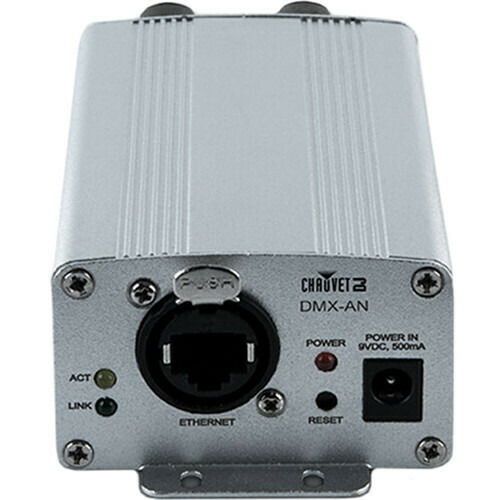

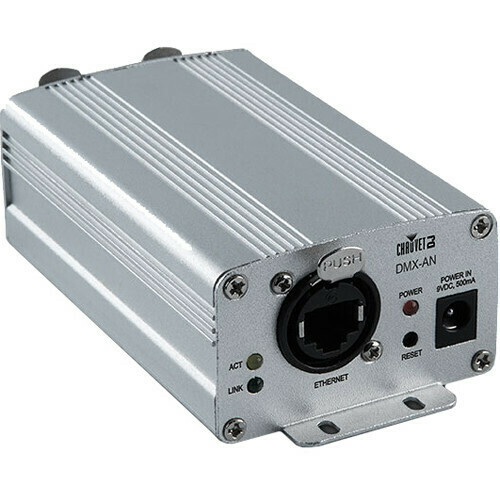

The DMX-AN Converter from Chauvet converts one Ethernet cable to two DMX universes. It also functions as an Art-Net to DMX or DMX to Art-Net interface, has a web-based GUI and a Neutrik etherCON in/through port. The unit supports POE (Power Over Ethernet) as well as the included external power supply.
Benefits
- Multi-purpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
- No universe/subnet setup with the built-in web based GUI
- Durable Neutrik etherCON in/through port ensures reliability
- Supports Power over Ethernet (POE) or an external power supply
- Both outputs can be set to either Art-Net or sACN
- Functions as an Art-Net to DMX or DMX to Art-Net interface
- Onboard LED indicators quickly inform status
- Integrated mounting bracket to quickly install into any location
CHAUVET DJ DMXAN Specs
| DMX Channels | 1024 |
| Connectors | 2x DMX 3-pin XLR |
| Control Protocol | Art-Net, DMX, sACN |
| Voltage | Input Voltage: (DC) 9 VDC, 500 mA
External Power Supply: 100 to 240 VAC, 50/60 Hz
POE: 48 V, 0.4 A |
| Approvals | CE |
| Dimensions | 4.7 x 2.5 x 1.5" (120 x 64 x 39 mm) |
| Weight | 0.4 lb (0.2 kg) |
Packaging Info
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 7.7 x 6.4 x 3" |
