| Analog Inputs | Number of Inputs: 2 x line inputs, 1 x RTA mic input
Connectors: 2 x female XLR line inputs, 1 x female XLR RTA mic input
Type: Electronically balanced/RF filtered
Impedance: > 50 kOhms
Max Input Level (line inputs): > +20 dBu
CMRR: > 45 dB
RTA Mic Preamp Phantom Power: +15 VDC |

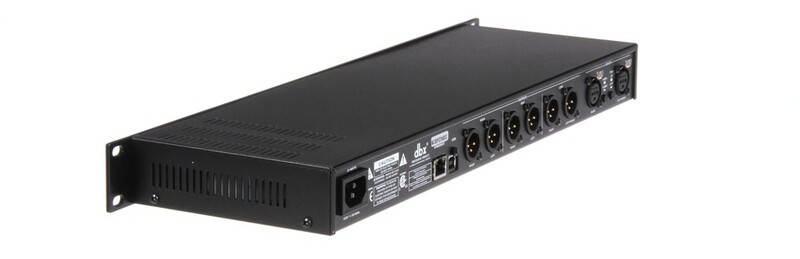

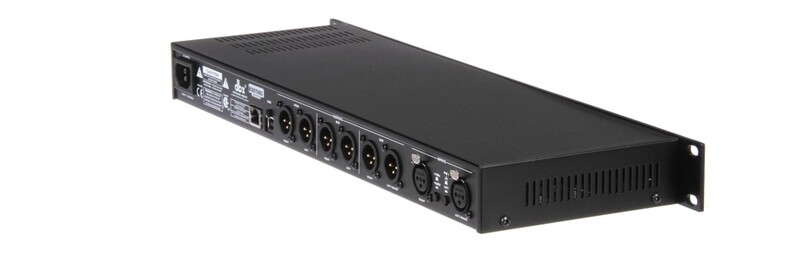

| Analog Outputs | Number of Outputs: 6 x line outputs
Connectors: Male XLR
Type: Electronically balanced, RF filtered
Impedance: 120 Ohms
Max Output Level: +20 dBu
Alignment Delay: Up to 10 ms per output channel pair |
| A/D and D/A Conversion | A/D Performance
A/D Converter: 24-bit with dbx Type IV Conversion System
A/D Dynamic Range: 112 dB A-weighted, 110 dB unweighted
Type IV Dynamic Range:
123 dB with transient material, A-weighted, 22 kHz BW
121 dB with transient material, unweighted, 22 kHz BW
115 dB typical with program material, A-weighted, 22 kHz BW
D/A Performance
D/A Converter: 24-bit
D/A Dynamic Range: 112 dB A-weighted, 110 dB unweighted |
| Internal Processing | 32-bit floating point |
| Sample Rate | 48 kHz |
| Dynamic Range | A-Weighted: 110 dB Unweighted: 107 dB |
| THD + N | 0.003% typical at +4 dBu, 1 kHz, 0 dB input gain |
| Frequency Response | 20 Hz to 20 kHz, (+0 /- 0.5 dB) |
| Crosstalk | Interchannel Crosstalk: < -110 dB, -120 dB typical (input-to-output: < -100 dB) |
| Latency | Input to output: 1.847 ms |
| Power | Operating Voltage: 100 to 120 VAC 50/60 Hz or 220 to 240 VAC 50/60 Hz
Power Consumption: 22 W |
| Dimensions (H x D x W) | 1.8 x 5.8 x 19.0" / 44.5 x 146.1 x 482.6 mm |
| Weight | 5.3 lb / 2.4 kg |
