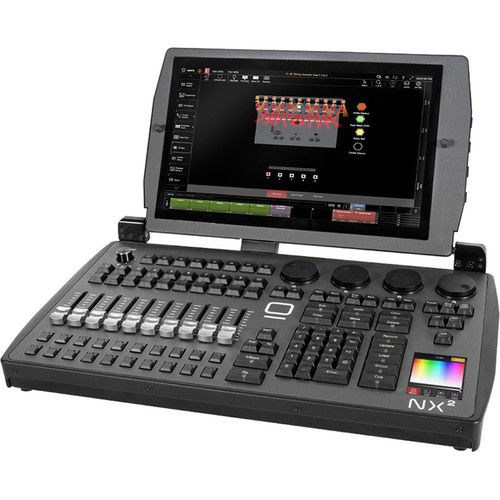

The NX2 64-Universe ONYX OS Lighting Controller from Elation Professional is the ultimate compact yet powerful fully integrated lighting controller. As a member of the innovative ONYX platform from Obsidian Control Systems the NX2 is feature rich and never restricted in its capabilities. The NX2 includes a high-brightness 1920x1080 HD multitouch screen, eight assignable parameter encoders, an assistive mini touchscreen, full keypad and command section, a dedicated grandmaster playback, and 10 full playbacks with four freely assignable buttons.
Utilizing the latest in industrial components, the NX2 contains a powerful new Intel Hexa-Core processor, high-speed NVMe SSD drive and 16GB of DDR4 RAM. Fast boot times, instant operation, and the ability to process 64 universes right inside the console without the need for costly external processing networks result in unprecedented power in this form factor.
The NX2 is ergonomic with its compact footprint, full ONYX command and keypad section, and the bright adjustable HD touchscreen. It is always ready to run the largest shows and events at a moment's notice.

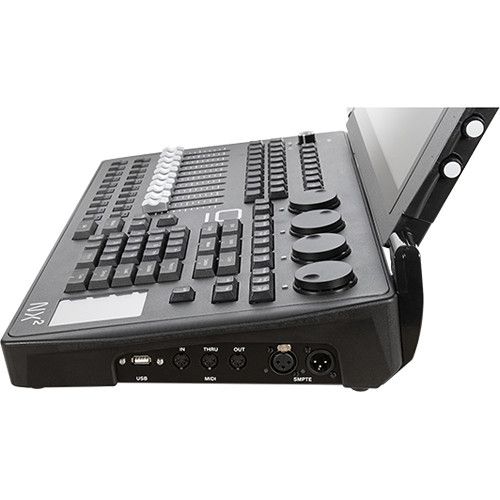

With four DMX ports, Timecode, MIDI, and dual Gigabit ports, for up to 64 Universes of Art-Net and sACN, plus the ONYX X-Net protocol, the NX 2 has all the connectivity and power for the ever-increasing sizes of shows. Two additional 4K touch monitors are supported for even more direct access at any time.
For powerful visualization of lighting and scenery every NX2 console includes a free Capture Solo Edition license.
Display
| Panel Type | TFT LCD |
| Display Size | 15.6" |
| Resolution | 1920 x 1080 |
| Touchscreen | Yes |
Inputs / Outputs
| USB I/O | 4 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output
1 x USB-A 2.0 Female Input/Output
1 x USB-B 2.0 Female Input |
| Video I/O | 2x DisplayPort Output |
| Audio I/O | 2x 1/8" / 3.5 mm Output
1x DIN 5-Pin MIDI Input/Output |
| Media/Memory Card Slot | Single Slot: NVMe SSD [250 GB Maximum] |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3 A |
| DC Input Power | 12 VDC at 11 A |
| Power Consumption | 132 W (Maximum) |
Environmental
| Environmental Protection | No |
Physical
| Dimensions | 21.3 x 11.8 x 4.8" / 54 x 30 x 12.1 cm |
| Weight | 19.8 lb / 9 kg |
Packaging Info
| Package Weight | 26.135 lb |
| Box Dimensions (LxWxH) | 24.8 x 16.2 x 9.7" |
