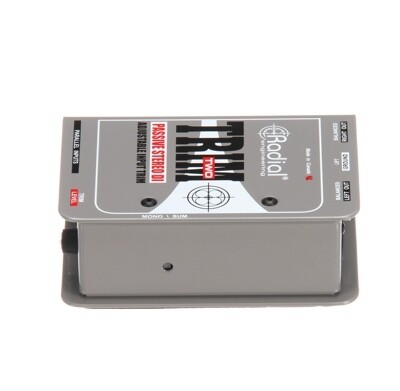

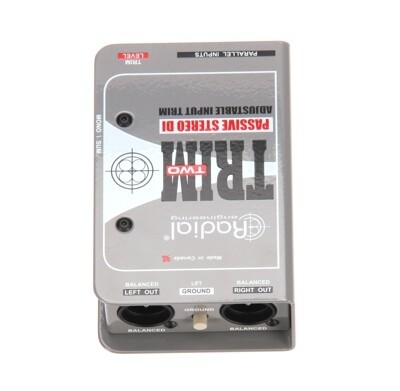

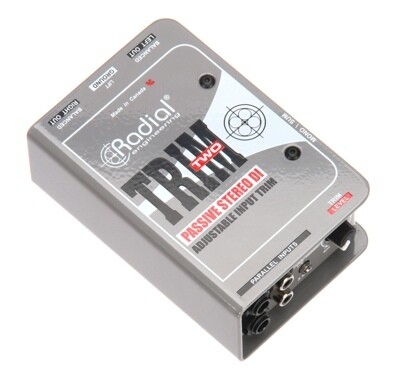

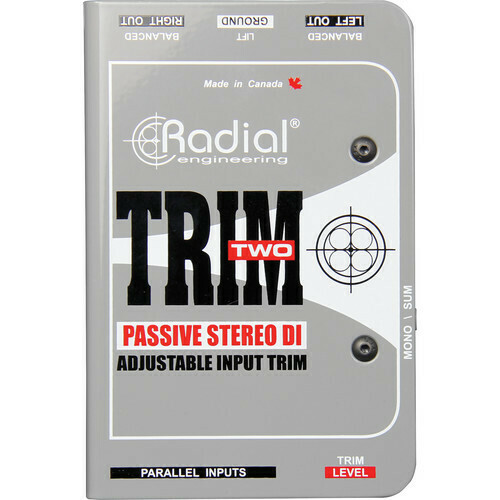

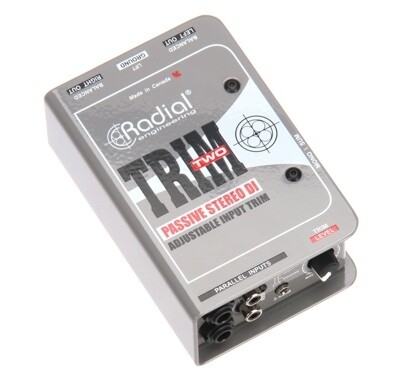

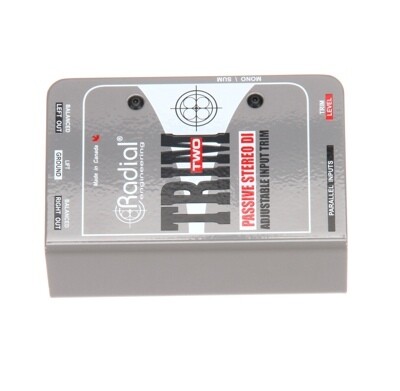

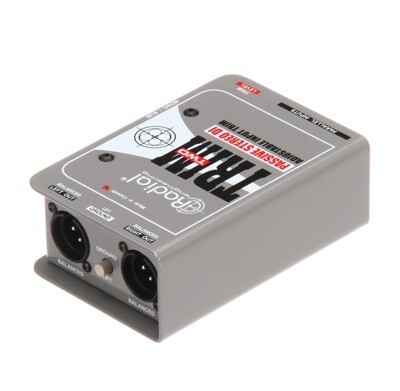

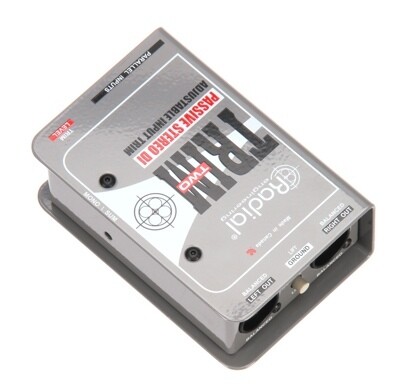

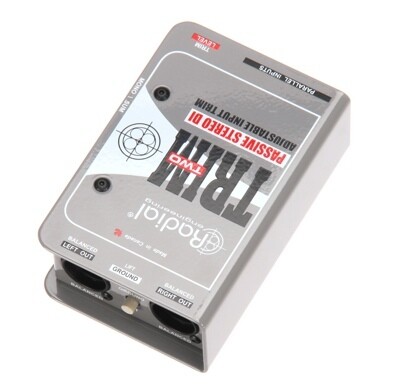

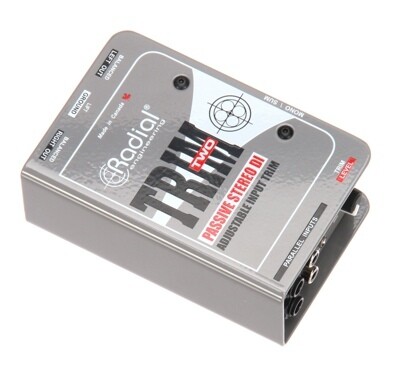

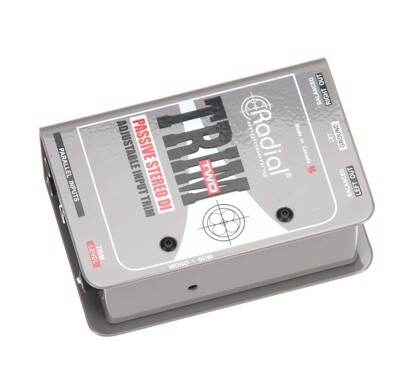

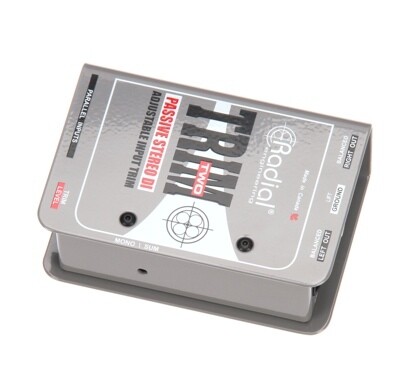

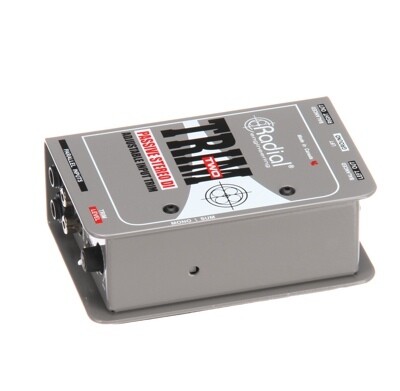

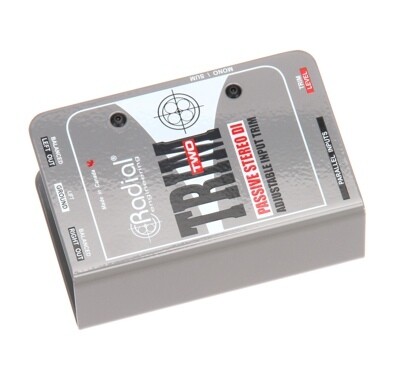

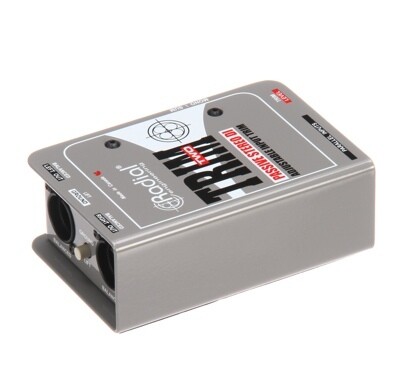

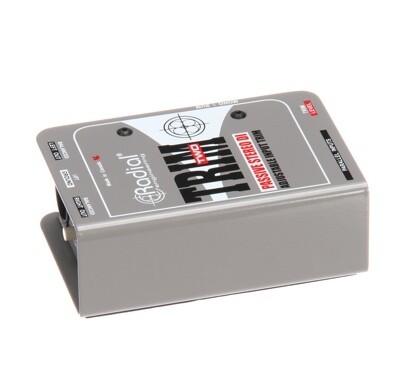

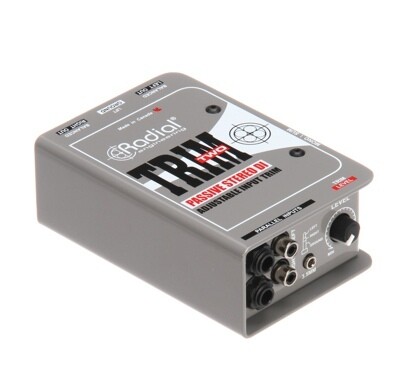

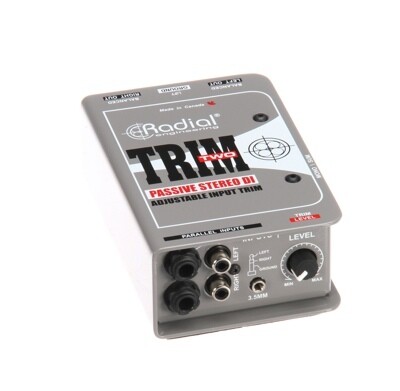

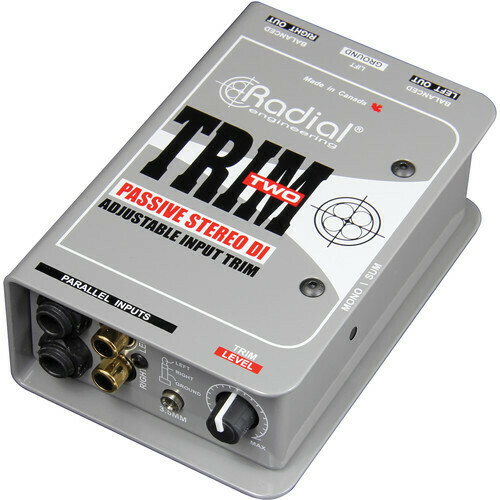

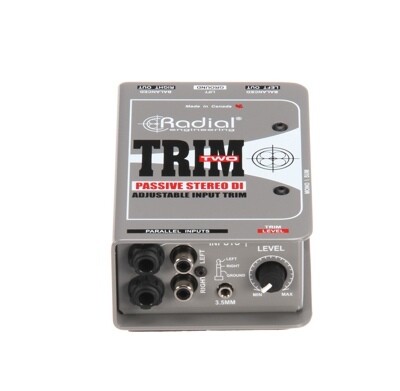

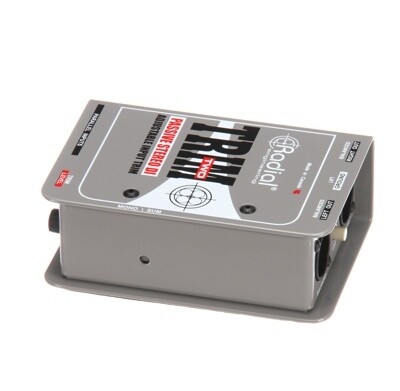

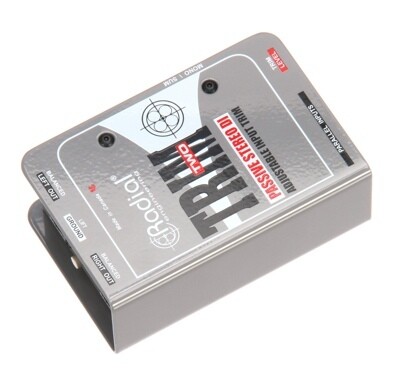

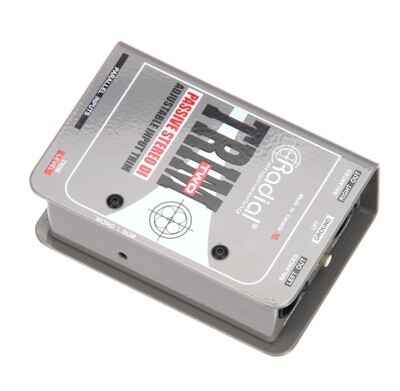

Radial Engineering R800 1117 Overview

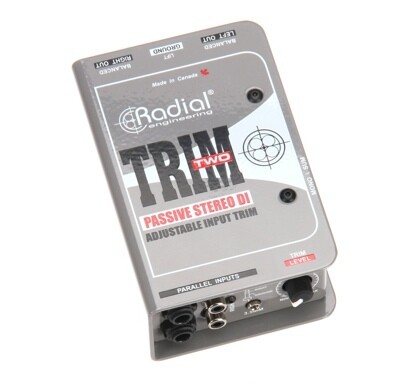

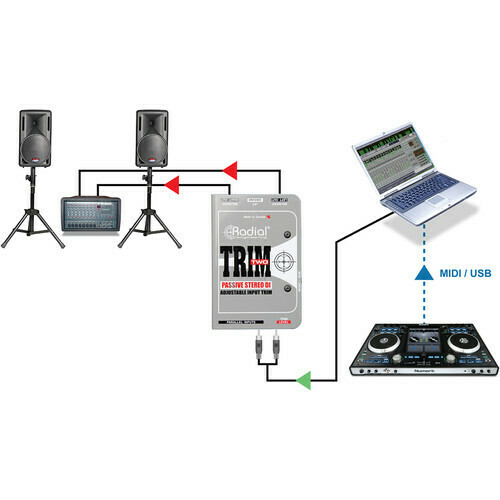

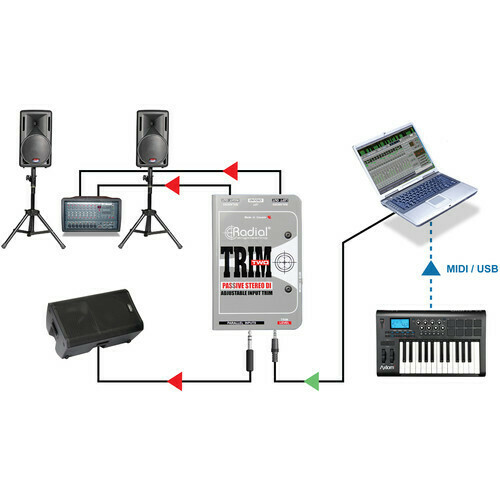

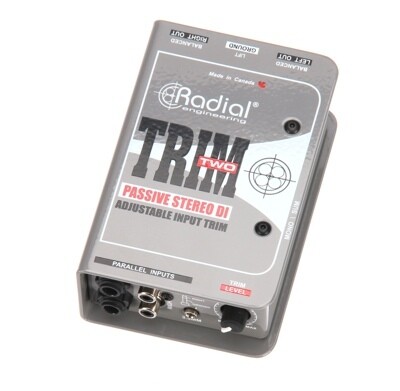

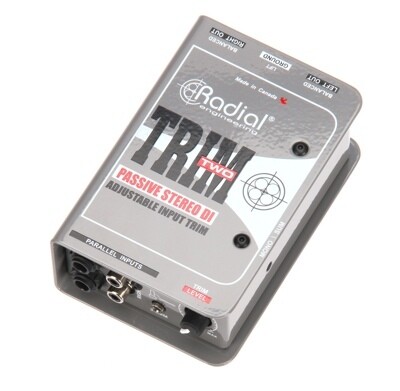

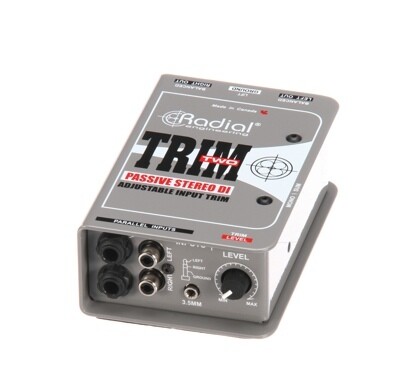

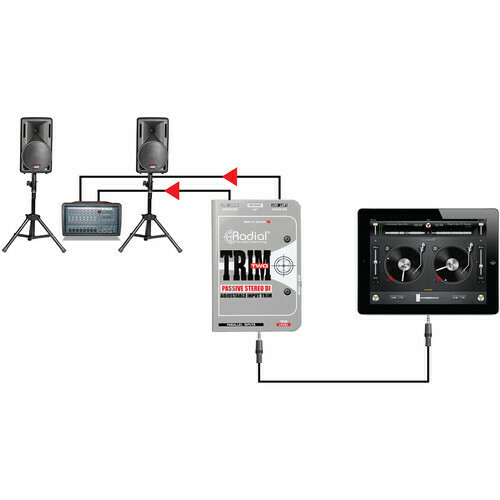

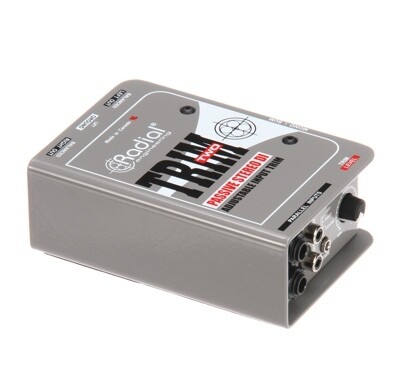

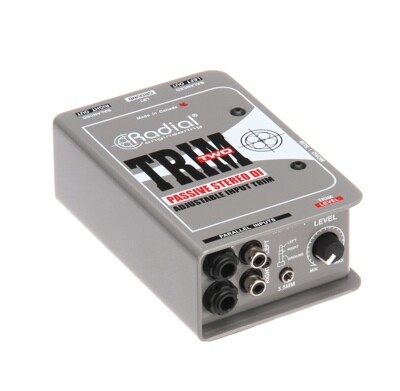

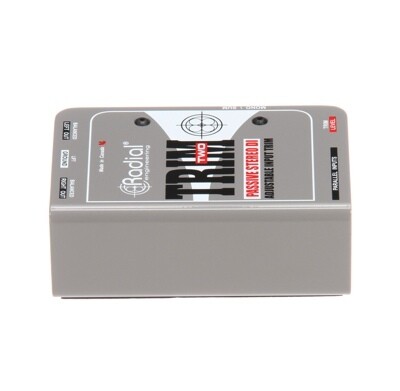

Allowing you to connect your laptop, MP3 player, or other line-level consumer device to a balanced destination, the Trim-Two Stereo DI with Volume Control from Radial Engineering provides a variety of input options, including 1/4", RCA, and stereo 1/8" connections. For additional control, there is a variable level knob that allows you to adjust the output signal level. Designed to provide a linear response from 30 Hz to 20 kHz, the Trim-Two will not color or alter the sound of your input.
The unit features Radial's Eclipse transformers, which help isolate the input signal from the output to eliminate noise and interference, and deliver a linear frequency response from 20 Hz to 18 kHz. The Trim-Two is constructed from 14-gauge steel, making it sturdy enough to use live.
Stereo direct box for line-level sources
Linear response from 30 Hz to 20 kHz

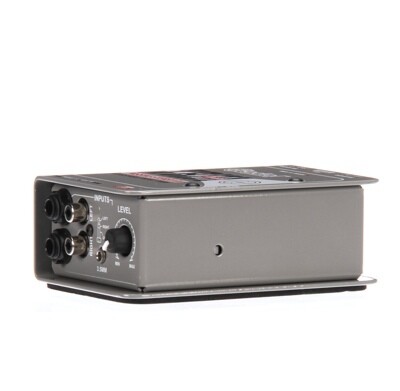

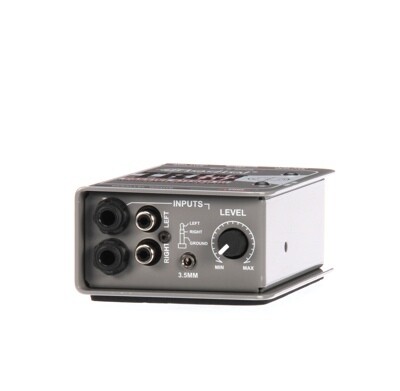

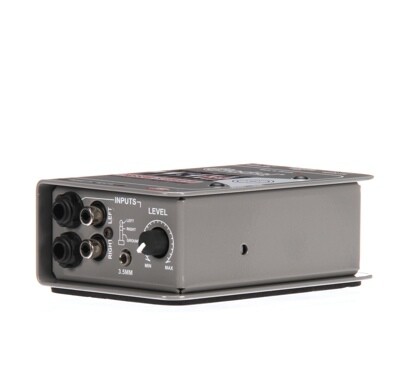

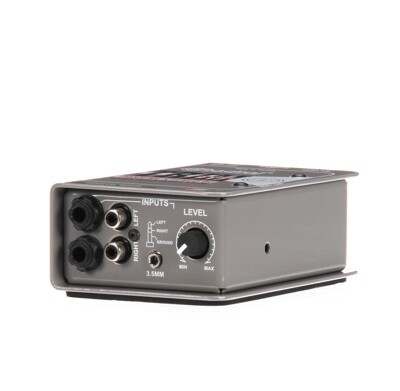

Easy access front panel volume control

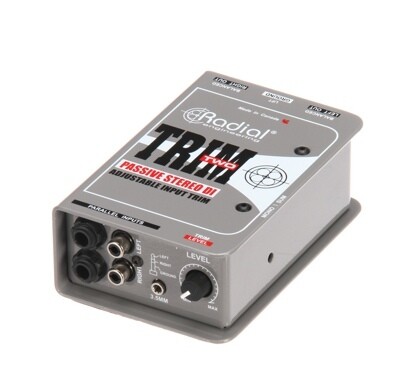

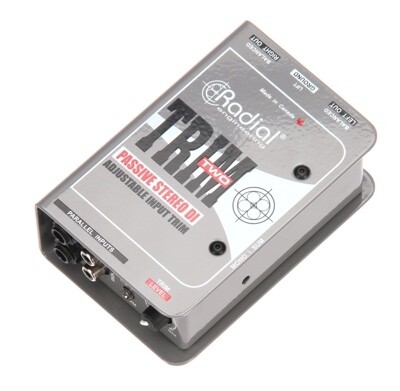

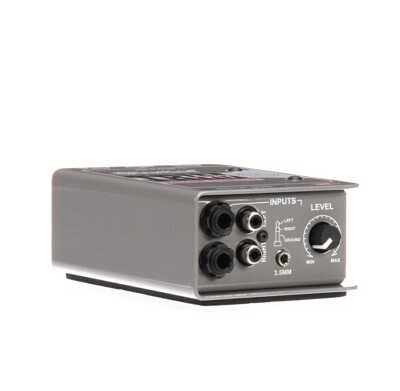

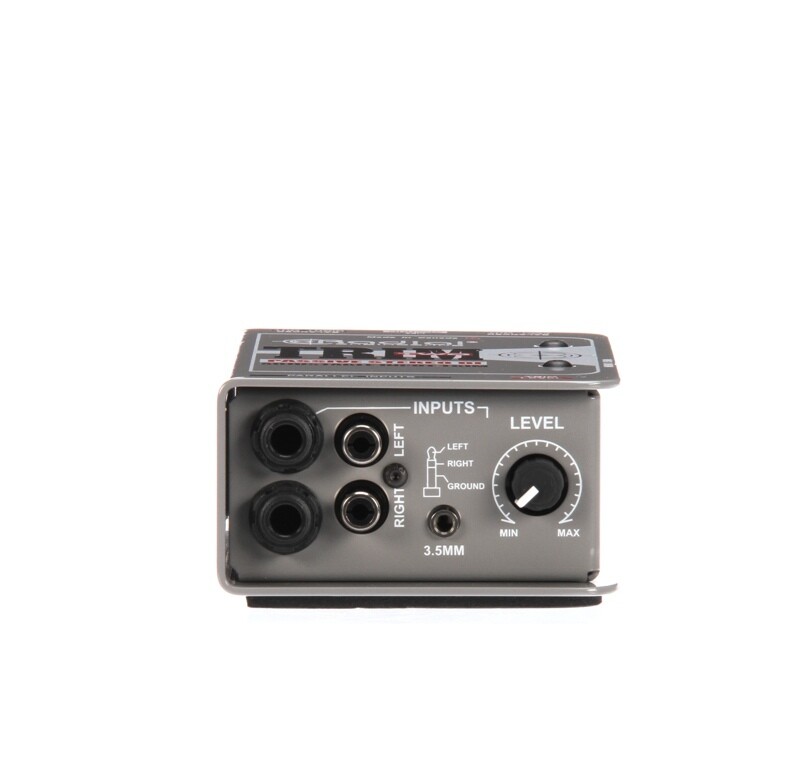

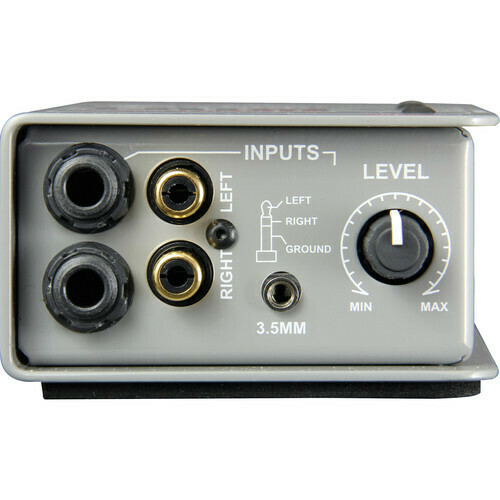

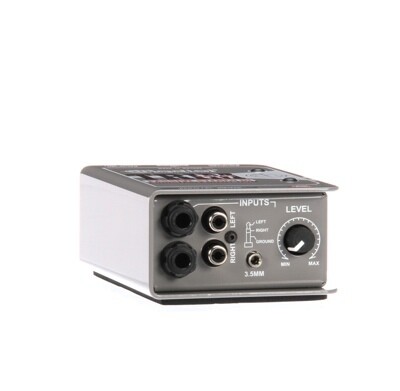

Choice of RCA, 1/4" and 1/8" connectors
Radial Engineering R800 1117 Specs
Audio
| Audio Circuit Type | Passive, transformer based |
| Channels | Dual Channel (Stereo) |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | >100 dB |
| Maximum Input | +20 dB @ 20 Hz |
| Total Harmonic Distortion | 0.009% |
| Phase Deviation | <10° |
| Input Impedance | 10 kOhms, unbalanced |
| Output Impedance | 2.8 kOhms, balanced |
I/O

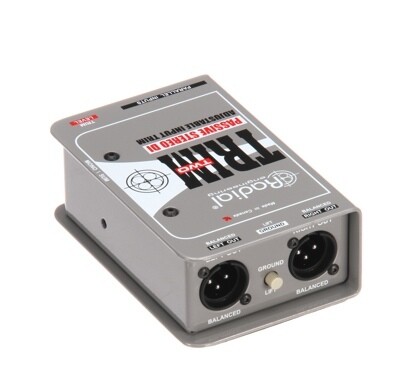

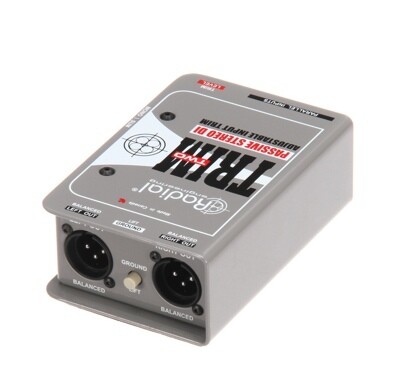

| Connectors | 2x 1/4" (6.3 mm) inputs
2x RCA (L, R) inputs
1x 1/8" (3.5 mm) input

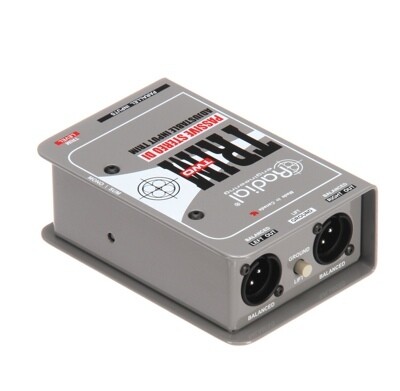

2x XLR-M (L, R) outputs |
| Transformer | Custom |
| Shield | Copper foil |
| Input Pad Switch | Variable level control |
| Summing | Mono Sum: Merges left + right sources to mono |

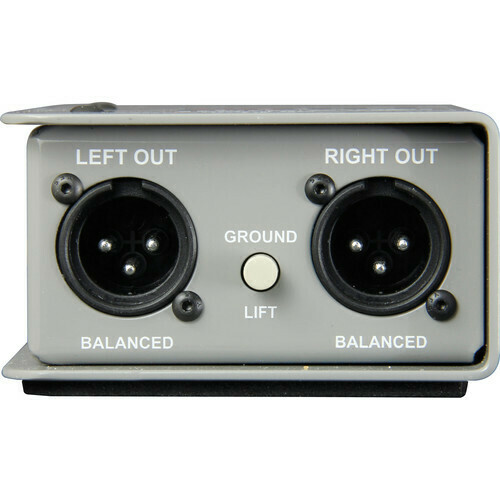

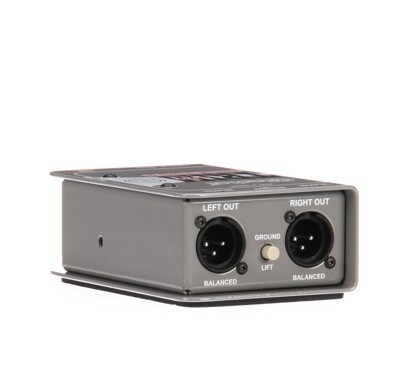

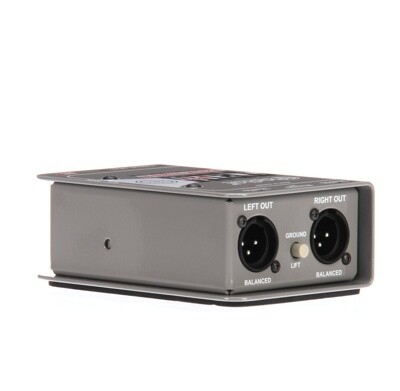

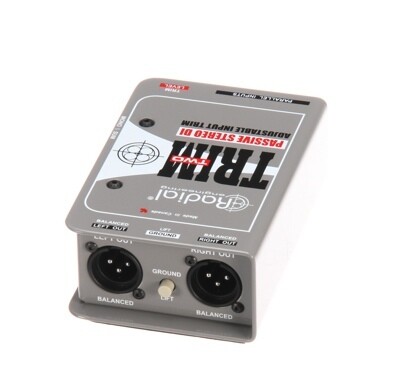

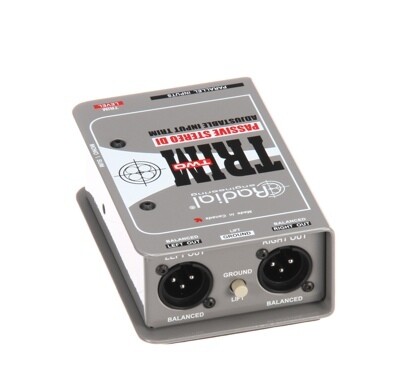

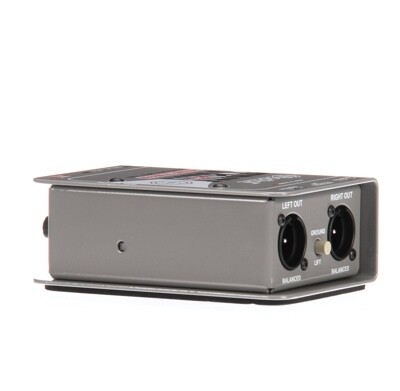

| Ground Lift | Disconnects pin-1 @ both XLR outputs |
| XLR Configuration | AES standard (pin-2 Hot) |
General
| Construction | 14-gauge steel chassis & outer shell |
| Finish | Durable powder coat |
| Power | Passive, no power required |
| Operating Conditions | For use in dry locations only between 41 to 104°F (5 and 40°C) |
| Dimensions (WxHxD) | 3.3 x 5.0 x 2" (84 x 127 x 48 mm) |
| Weight | 1.55 lb (0.7 kg) |
Packaging Info
| Package Weight | 1.715 lb |
| Box Dimensions (LxWxH) | 6.35 x 4.35 x 2.95" |
UPC: 676101043507
