Radial Engineering Catapult MINI Overview

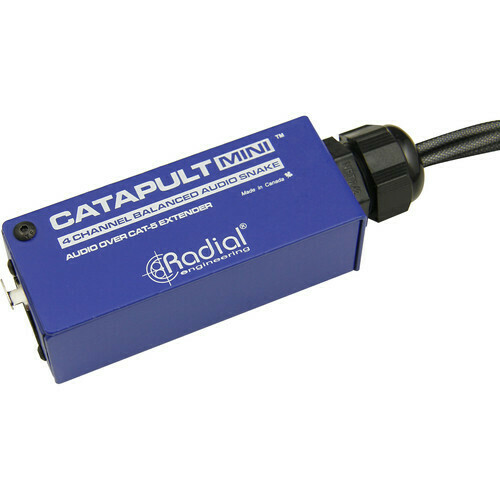

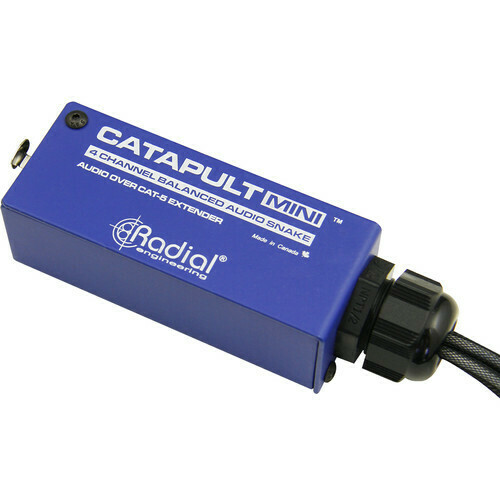

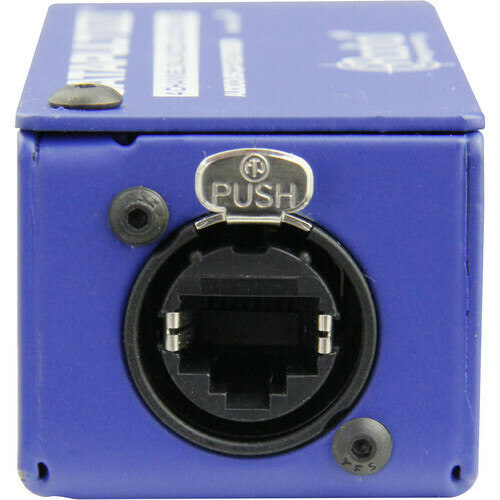

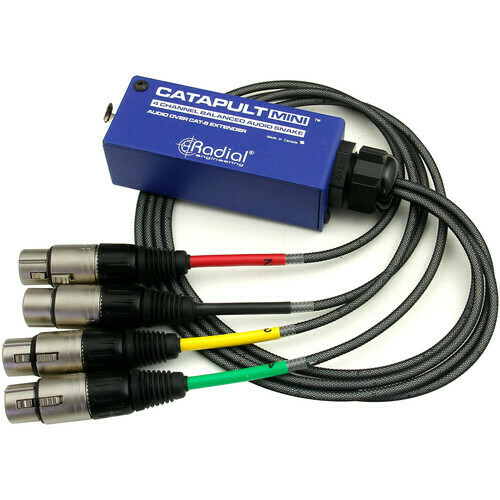

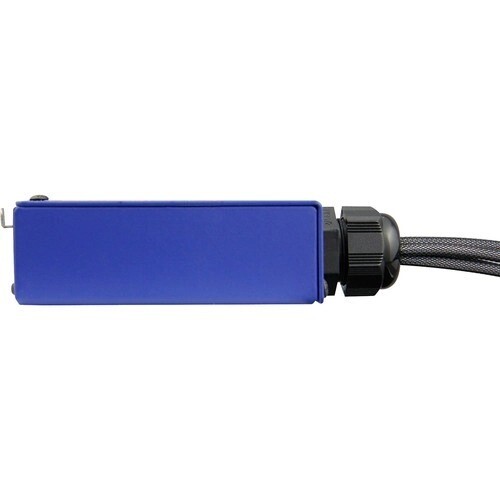

The Catapult Mini TX from Radial Engineering acts as a 4-channel audio snake. It allows you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. The Catapult Mini TX features four female XLR inputs on cable tails and an RJ45 output, which sends analog audio over cat 5/6 Ethernet cables. The housing is made of 16-gauge steel for handling any environment and is powder coated.
Expando mesh sheathing provides extra durability and protects cables from damage
Color-coded heatshrink labels for identifying channels at a glance
Can be used with Catapult Mini RX with a Cat 5 cable
Radial Engineering Catapult MINI Specs
| Inputs | 4 x Female XLR |
| Output | RJ45 |
| Frequency Response | 7 Hz to 20 kHz |
| THD + N | 0.0005%, 1 kHz |
| Dynamic Range | 140 dB |
| Maximum Input | 35 dBu |
| Minimum Load Impedance | 100 Ohms |
| Common Mode Rejection | > 103 dB |
| Construction | 16-Gauge Steel Chassis and Outer Shell |
| Cable Length | 2' / 0.6 m |
| Dimensions | 4.2 x 1.3 x 1.6" / 10.7 x 3.4 x 4.1 cm |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 6.4 x 4.2 x 3.05" |
UPC: 676101044757
