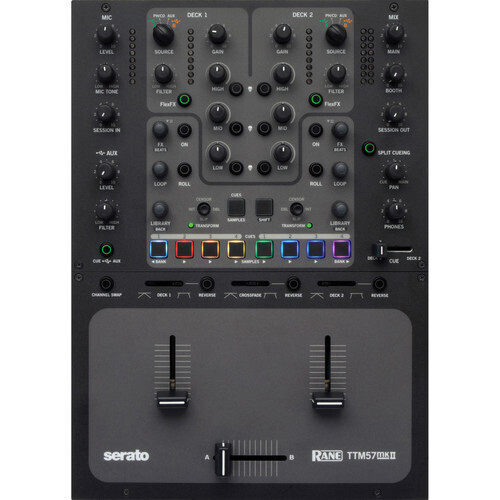

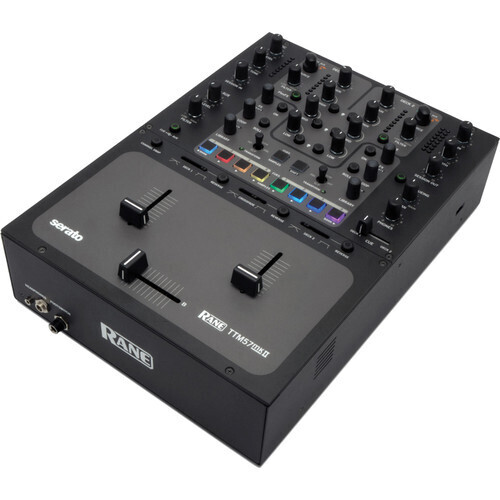

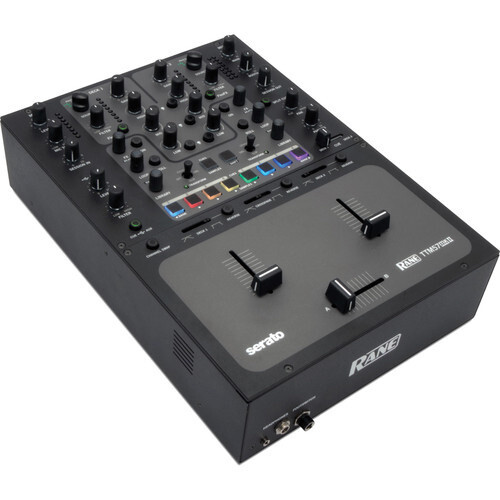

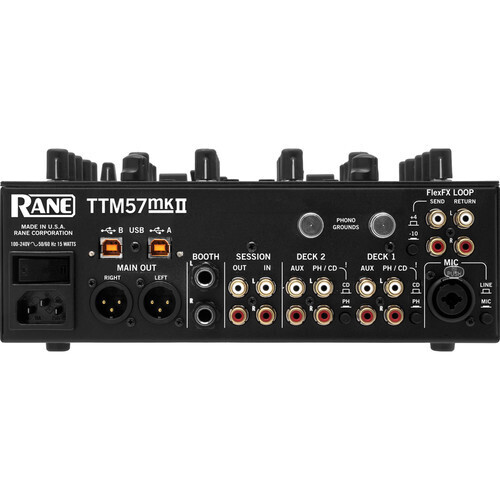

Rane TTM57 MKII 2-Channel DJ Mixer with Integrated Serato Interface (Used)

• Dual USB 2.0 high speed class compliant audio and MIDI USB ports:
  • No driver required on a Mac
  • High performance ASIO driver for Windows
  • 10 record and 10 playback channels per port
• Sample rates of 44.1 kHz, 48 kHz and 96 kHz
• Dedicated Serato DJ iZotope USB FX inserts for each deck
• Software color coded silicone RGB back-lit pads
• Aux USB input dedicated to the SP-6 sampler
• 3 High/Low-Pass sweep filters for Decks 1, 2 and Aux
• Rane’s proprietary non-contact magnetic faders

• Each bus selects USB Port A or B computer playback, a Phono / CD deck input, or an Aux line-level input
  • Gain trim and metering
• Sweepable Low / High-pass effect Filter
• 3-band full-cut tone controls:
  • Kill switches are momentary on/off
  • Press SHIFT and a Kill to latch it on

• Software FX on/off button
• FX knob parameter adjustment:
  • Turn to scroll through FX
  • Press to select the FX
  • Hold SHIFT to change the Beats parameter
• LOOP knob selects the loop length
  • Press it to engage Auto Loop
  • Hold down ROLL for Loop Roll
• LIBRARY knob scrolls songs or crates:
  • Press to load a song or crate
  • Hold SHIFT to tab between song and crate selection
• TRANSFORM joystick:
  • Press for Transform on/off
  • Transform on: any direction cuts the audio
  • Transform off: multifunction software control (gray text)

• CUES / SAMPLES button toggles between Cues and Samples
  • The button is lit when Cues are active
• Four Cues per Deck. The active USB follows the Deck source selection
  • Lit button colors match the Cue colors in Serato DJ software
  • Press an un-lit button to create a new Cue. Hold SHIFT to delete a Cue
• Six Sample triggers and Bank select buttons (Bank up and Bank down)
  • A lit button indicates a ready-to-play sample in Serato DJ

The USB Aux Input is usually from the Serato SP-6 sample player, with its own Level control, Low / High-pass sweep Filter and headphone cue. The USB Cue overrides any Deck Cue when it's on

• With a computer plugged into each USB port, simply switch a mixer Deck selector to USB A or USB B and audio and MIDI are assigned. Seamlessly switch from one DJ to the next using Serato DJ or other 3rd-party audio software
• Each port can stream 20 channels of low-latency audio at 44.1, 48, or 96 kHz
• A typical setup includes two Serato DVS decks, software FX through independent USB digital inserts for each Deck, and the SP-6 sample player on its own USB Aux input

• The Cue slider cues Deck 1 or Deck 2 by moving the slider accordingly. This lets you adjust a Deck volume in the headphones without raising the Deck Gain control
• When Split Cue is off, the Cue / Main Pan knob balances how much stereo cue and stereo main mix you hear in the headphones
• When Split Cue is on, the Cued Deck goes to the left headphone cup and the Main mix goes to the right cup. The Cue / Main Pan knob balances how much Cue (left) and Main (right) is heard in the headphones

• The proprietary Rane magnetic fader is fast, accurate, and long lasting. The design uses non-contact technology previously reserved for demanding aerospace and industrial applications. No travel noise and no channel bleed
• Rane's magnetic faders accurately translate hand motion into precise audio level control. Non-contact fader technology is the only way to fully address the needs of the professional performance DJ

• Rane is fully supported by and include Serato DJ software. DJs currently using Serato Scratch Live with supported Rane hardware have the option to migrate to the new and improved Serato DJ free of charge
• Serato DJ provides support for DVS (digital vinyl system), iZotope FX, Sync, Slip Mode, more Cue points, jump-to-loop, an improved 24-slot sampler, and takes advantage of the high performance, ultra-low latency Rane ASIO and Core Audio drivers. Both programs share compatible song libraries, the same general workflow and deck layout

• Dual USB ports provide simultaneous connection of two computers, enabling back-to-back sets between laptop DJs running different software without compromise or interruption
• The USB ports are 100% class compliant, allowing hook-up to any Mac OS X device without the need for an additional driver
• The included high-performance ASIO driver runs most Windows DAW and DJ software
• MIDI end points are class compliant with both OS X and Windows devices
